Choosing a Grab Bar Size

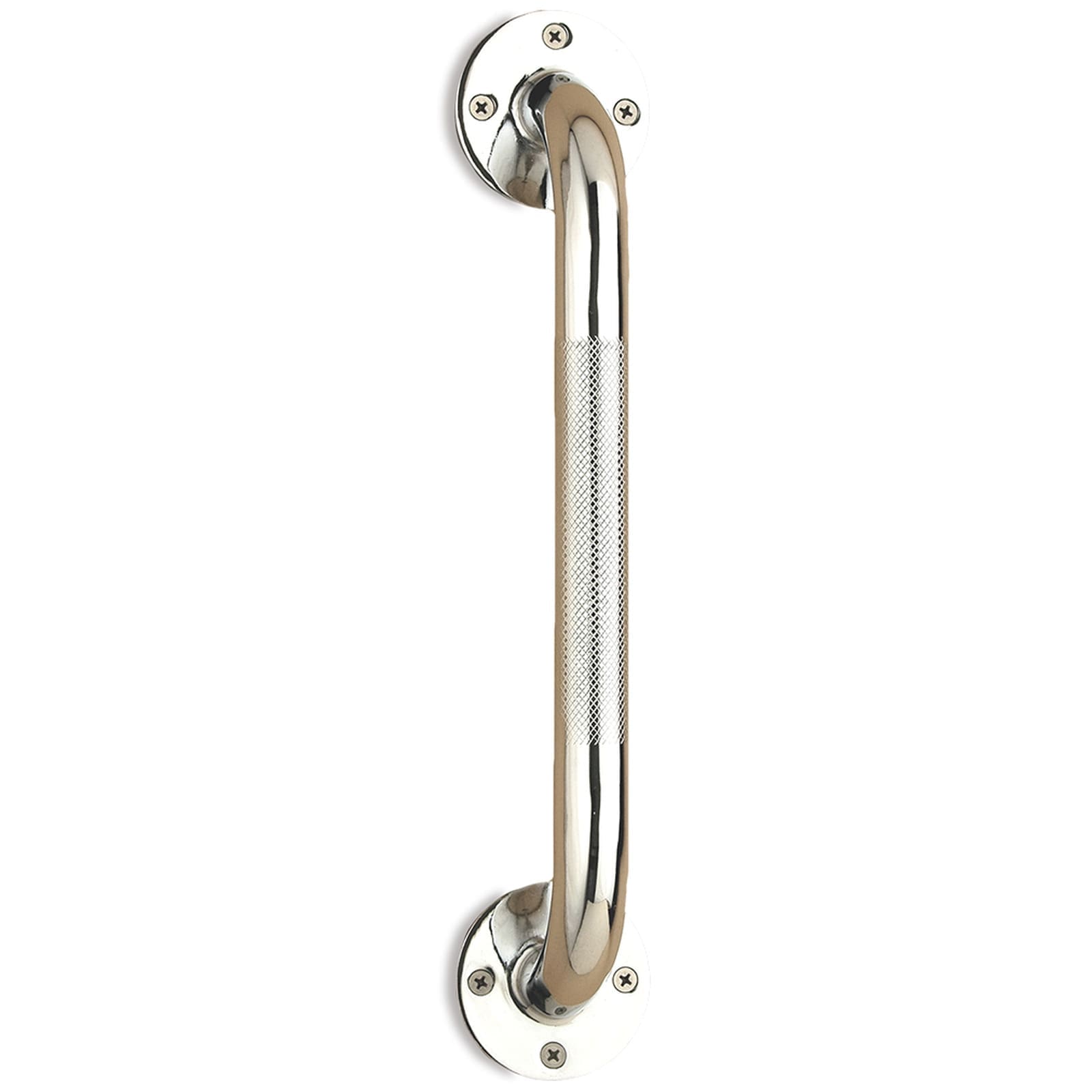

NOVA offers the Chrome Wall Grab Bar in five lengths, allowing you to choose a size that works with the intended installation location. The chrome models share the same basic construction and 250-pound weight capacity, with the item number changing according to length.

• 8012CH-R: 12-inch Chrome Wall Grab Bar.
• 8016CH-R: 16-inch Chrome Wall Grab Bar.
• 8018CH-R: 18-inch Chrome Wall Grab Bar.
• 8024CH-R: 24-inch Chrome Wall Grab Bar.
• 8032CH-R: 32-inch Chrome Wall Grab Bar.

Using the Grab Bar

The NOVA Chrome Wall Grab Bar is designed to provide a secure handhold for added stability. NOVA specifically instructs users to grasp the bar when entering or exiting a bathtub or shower and to use it for stabilization when needed.

Choosing an Installation Position

NOVA states that its Wall Grab Bars can be installed horizontally or vertically. Before installation, determine where support is needed and confirm that the wall and mounting location are appropriate for secure installation.

• The grab bar may be installed horizontally or vertically.
• Choose a length appropriate for the available mounting location.
• Locate the wall studs before determining the final mounting position.
• Make sure the selected location allows the grab bar to be securely mounted according to NOVA’s instructions.

Installing the Grab Bar

NOVA recommends consulting with a qualified professional before installation. The manufacturer’s instructions call for an electric drill, pencil, drill bits, Phillips screwdriver, and stud finder.

1. Locate the stud behind the existing shower wall to determine where the grab bar can be safely installed, then clean the portion of the wall that will be used for mounting.
2. Position the mounting flanges and use a pencil to mark the locations where the mounting holes need to be drilled.
3. Use a 1/4-inch drill bit to drill pilot holes through the shower wall and into the wood or metal stud.
4. If the wall is tiled, NOVA instructs installers to drill through the tile only with a 5/16-inch drill bit and then switch to a 1/4-inch drill bit to complete the hole.
5. Place the supplied rubber seals and mounting flanges against the wall and align them with the drilled holes.
6. Insert the supplied mounting screws and tighten them securely.
7. For tiled walls, NOVA instructs installers to insert the supplied plastic anchors into the holes before mounting.

What’s Included

• One Chrome Wall Grab Bar in the selected length.
• Six mounting screws.
• Six plastic anchors for tile applications.
• Two rubber seals.

Important Safety Information

• The maximum weight capacity is 250 lbs.
• Read NOVA’s complete instructions carefully before installing or using the Wall Grab Bar.
• NOVA recommends consulting with a qualified professional before installation to help avoid possible injury.
• The grab bar must be securely mounted according to NOVA’s installation instructions before use.
• NOVA instructs that both grab-bar flanges be mounted directly into wall studs or that the supplied plastic anchors be used when studs are not available.
• Check the grab bar regularly to make sure it remains securely mounted to the wall.
• Do not use the grab bar if it is loose, damaged, or no longer securely attached to the wall.

Cleaning and Care

NOVA recommends regularly checking that the Wall Grab Bar remains securely mounted. Clean the grab bar using mild detergent and warm water.

Warranty

NOVA lists a one-year warranty for its Wall Grab Bar on the current manufacturer product page.
