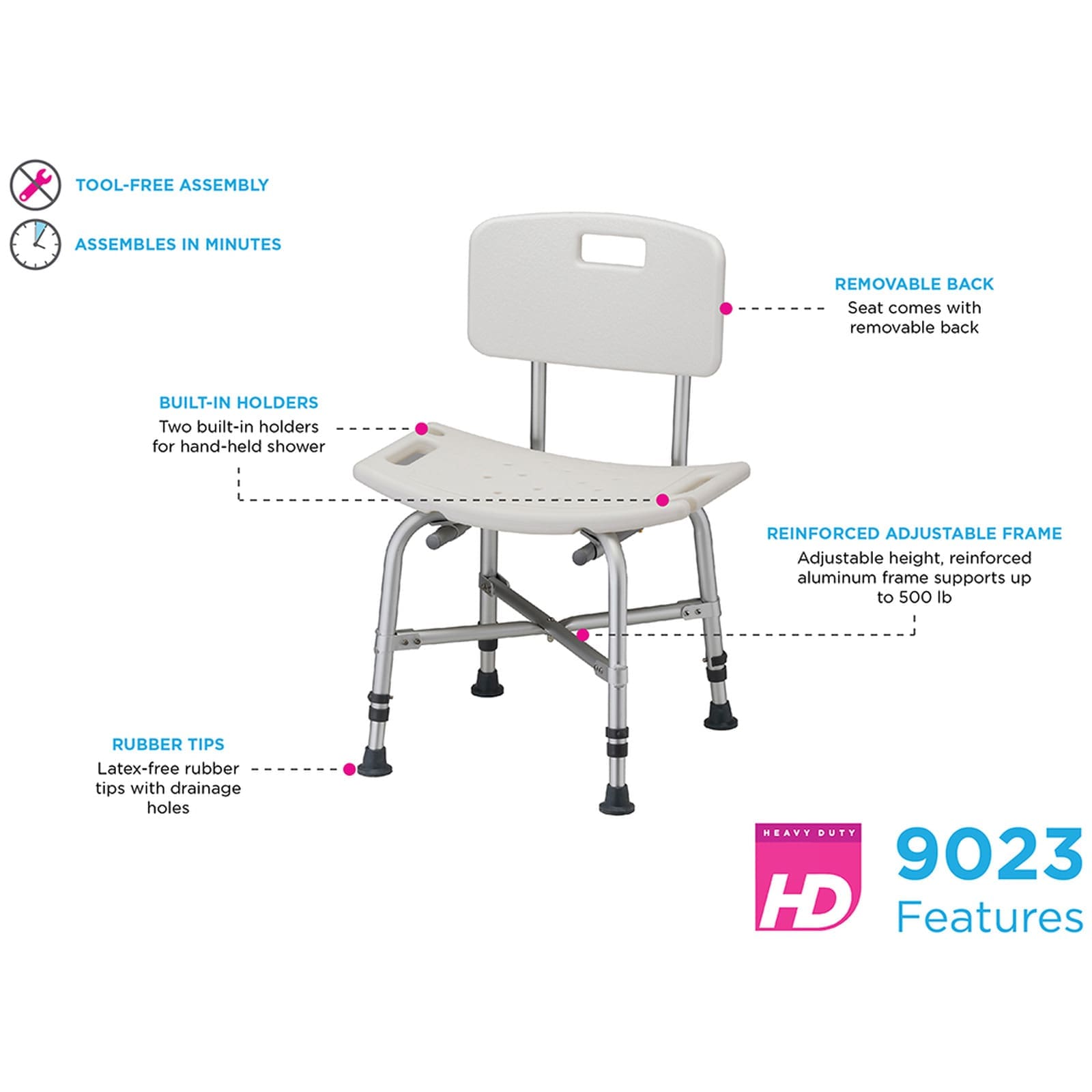

Using the Heavy Duty Bath Seat with Back

The NOVA Heavy Duty Bath Seat with Back is designed to provide a stable seated bathing surface with additional back support in a suitably sized bathtub or shower. Before sitting down, make sure the bench is level and stable, all four legs are securely adjusted to the same height, and the bath or shower provides enough room for all four legs to rest securely on the bathing surface.

Adjusting the Seat Height

The Heavy Duty Bath Seat adjusts from 17 to 23 inches high. NOVA requires all four legs to be adjusted to the same height so the bench remains level and stable.

1. Place the seat face down on a level surface with the legs facing upward.
2. Pull out the leg height adjustment clip.
3. Slide the leg to the desired height and align the hole in the leg with the hole in the seat frame.
4. Fully push the center pin of the height adjustment clip through the aligned holes.
5. Repeat the process for each leg and make sure all four legs are set to the same height.
6. Make sure every leg is stable and all adjustment components are fully engaged and locked before use.

Installing and Adjusting the Backrest

The plastic backrest is removable and attaches to the seat frame using push-button connections. NOVA also provides a second set of push-button positions that allow the backrest to be moved closer to the seat when needed.

1. Turn the bath seat onto its side.
2. Slide the backrest tubes into the four tube slots beneath the seat while depressing the brass push buttons on each side of the backrest tubes.
3. Continue inserting the tubes until the brass push buttons click and lock securely into position.
4. Check the backrest to make sure it is securely attached before use.
5. Use the second set of push-button positions if the backrest needs to be positioned closer to the seat.

Positioning the Bath Seat

Place the bath seat inside the bathtub or shower and make sure the bench is stable and does not wobble before sitting down. The bath seat should be used on a level surface with all four legs securely supported.

Using the Side Handles

The slots along both sides of the seat serve as handles when sitting down or getting up from the bench. NOVA specifically instructs users to hold both side handles for stability because placing weight on only one side can cause the bath bench to topple.

Using a Handheld Shower Head

The round openings located in the front and rear corners of the seat can be used to hold a compatible handheld shower head. A handheld shower set is not included with the Heavy Duty Bath Seat with Back.

Important Safety Information

• Do not exceed the 500 lb. maximum weight capacity.
• Make sure all four legs are adjusted to the same height so the bath seat sits level.
• Make sure all height adjustment clips are completely locked into position before use.
• Make sure the removable backrest is securely locked into position before relying on it for seated support.
• Check the bath seat before each use.
• Use the bath seat only on a level surface.
• Make sure the bench is stable and does not wobble before sitting down.
• Use both hands on the side handles for stability; NOVA warns that using only one hand on either side can topple the bench.
• Do not stand on the bath bench.
• Follow all manufacturer instructions carefully before assembling, adjusting, or using the product.

Cleaning and Care

NOVA recommends regular cleaning with a non-abrasive cleaner or detergent followed by rinsing with warm water. Do not use abrasive cloths because they may damage the surface.

• Regularly inspect the bath bench and its components for corrosion, breakage, compression, or wear.
• Regularly check the legs to make sure they remain securely set.
• Make sure all four legs remain adjusted to the same height.
• Check the bath seat before each use and discontinue use if it is damaged or unstable.

Warranty

NOVA provides a Limited Lifetime Warranty on the metal frame and a one-year limited warranty on non-metal/metal parts, including rubber tips and plastic or metal hardware. The warranty applies to the original purchaser and covers defects in materials and workmanship under normal use; it does not cover user negligence, misuse, failure to follow product instructions, normal wear and tear, negligent abuse, or unauthorized modifications.
